Surround Sound Speaker Mount free 3d print model download
This wall mount is for a small surround sound speaker ~ 3? x 4? x 5? and light in weight. This mount allows the speaker angle to be adjusted vertically and horizontally so you can point it pretty much wherever you need it. I made this mount to work with #8 har
- Model code
- 2272
5.00 USD
ABOUT THIS MODEL
Description & specifications

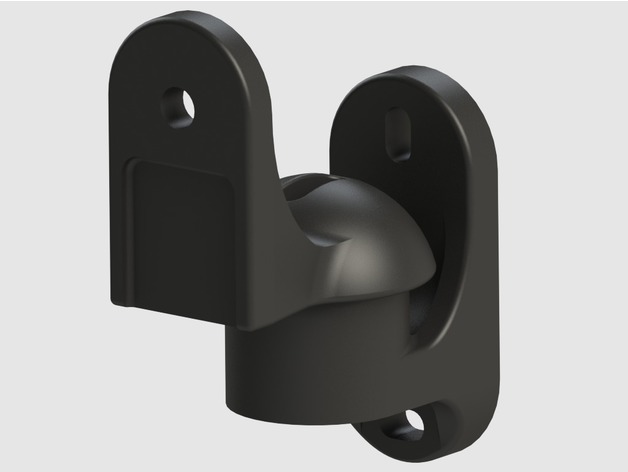

This wall mount is for a small surround sound speaker ~ 3? x 4? x 5? and light in weight. This mount allows the speaker angle to be adjusted vertically and horizontally so you can point it pretty much wherever you need it. I made this mount to work with #8 hardware. The hole for the speaker will accommodate up to a #10 screw. The hardware for the adjustable link between the mounts will take a #8-32 x 3/4? lg machine bolt, narrow washer, lock washer and nut. You may need a long socket to get to the nut. Mounting it to the wall will use a #8 wood or metal screw, but make sure the screws are long enough and located to actually anchor into a stud (Don?t trust wall anchors ? lazy tool of the devil). Also note that I may have machine screws for the wall in the render, but don?t use ? that?s all I had in the toolbox at the time?Mount the speaker to the Speaker mount bracket, then attach the Wall mount bracket to the wall. Join the two with the #8 hardware mentioned above, aim speaker and tighten ? don?t torque it ? it?s just a print after all?Print SettingsPrinter Brand:SeeMeCNCPrinter:Rostock MAX v3Rafts:NoSupports:YesResolution:.15Infill:100Credits:dstorer Rate this 3D modelDownload 3D modelsFileFile size Surround_Sound_Speaker_Mount648 KB
