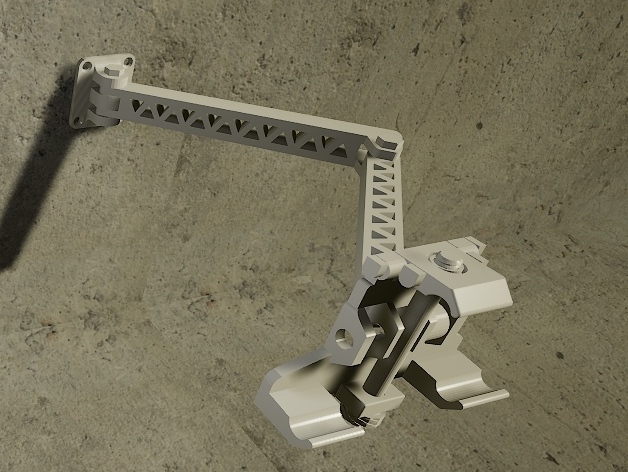

A fully 3D printed articulated wall mount for your smart phone.Chose the Phone_Bracket file which corresponds the best with your total width (including any hull etc.)I?m using Phone_Bracket_750 for my LG G4 since it?s about 75mm wide.I don?t have the time right now to revise it to be easily customizeable so I included different versions ranging from 65mm up to 80mm of width in 2.5mm step size.With the clamping screw it has a adaptability of around 8 mm.Print SettingsPrinter Brand:MakerBotPrinter:MakerBot Replicator (5th Generation)Rafts:Doesn?t MatterSupports:NoResolution:0.15Infill:10%Notes:I suggest 3 perimeters, no support and 20% infill for the wall mount and bolts and 10 % infill for the rest.You can add supports to the horizontal smooth 10 mm bore holes if you want to, the threads have lots of tolerance and should do fine without, low layer height helps with the overhangs.Post-PrintingAssemble as seen in the picture ? tighten the bolts to reduce / stiffen the movability.Credits:3ddruckqueck Rate this 3D modelDownload 3D modelsFileFile size Smart_Phone_Wall_Mount3 MB
