Servo Switch Plate Mount free 3d print model download

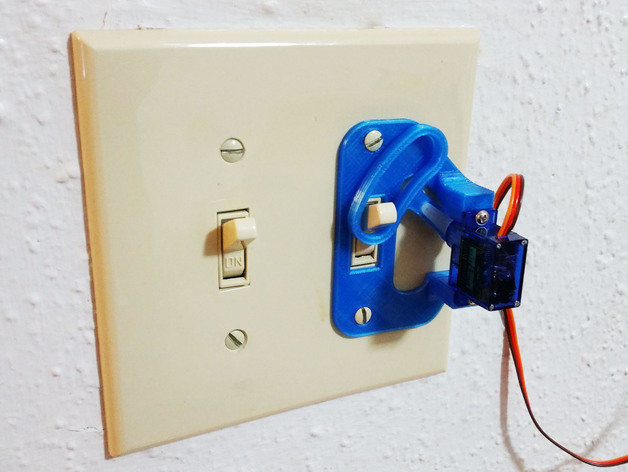

This is a simple servo mount that you can attach to a standard switch plate. Connect the servo to a microcontroller for a quick home automation project.///////What You Need: -Micro sized servo (I used cheap SG90 9G micro servos from ebay) -Mounting hardware for servo and arm (typically comes with the servo when you buy it) -arduino//////EXAMPLE ARDUINO CODE: -You will need to have the Servo.h library installed -Connect servo to Pin 9, GND, and 5V -Turns the switch ON right after you connect to power -Turns the switch OFF after 5s, ON after 10s, OFF after 15s, ON after 20s, then loops. -You can change or add time intervals as needed////////POSITIONING* -Servo neutral position is 60 degrees -Switch ON position is at 100 degrees, and OFF position is at 20 degrees -May need to change these numbers depending on you servo.*When programming the servo, the arm should move about +-40 degrees from the neutral position to turn the switch ON and OFF. Experiment with these numbers for best results.Print SettingsRafts:Doesn?t MatterSupports:Doesn?t MatterCredits:carjo3000 Rate this 3D modelDownload 3D modelsFileFile size Servo_Switch_Plate_Mount34 KB
