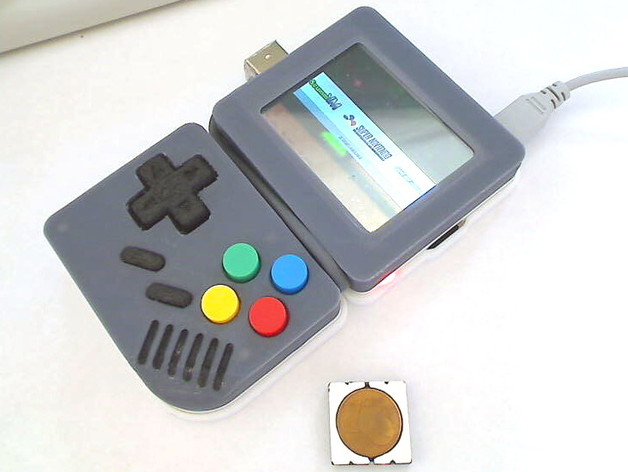

combine this A+&adafruit-PiTfT enclosure with this controller (+back-frame) for your very own super portable pi-boy classicthis is a homage to the gameboy classic (at ~75% the size ? with a little influence of the SNES-controller (four buttons, and a bigger d-pad)Note: batteries not included! ? this is intended to run of a 5v battery-packs (aka phone chargers) which are quite cheap/compact/abundant nowadaysInspired by Adafruits very nice Pocket PiGRRLUpdate 2015-07-25: added backplate_magnetic: a sturdier variant that holds onto the screws of the controller and the display unit with 5mm diam. x 2mm high magnets. Instructionsprint the top part (flipped over!), the bottom and the backplane in ABS/PLA and the d-pad and two start/select buttons in ninjaflex (or some other softer material)cut a perfboard (1,5mm thick) down to fit snug into the bottom part, and populate it with buttons, an attiny861A and some other parts, program, flash and-so-forth OR get one of those usb-snes-controllers and rewire one of theseBOM: alps 4-way navigation switch (adafruit shop) colored switches for A B X and Y (reichelt.de : ?DT 6 RT?, ?DT 6 BL?, ?DT 6 GE?, ?DT 6 GN?) tiny tactile switches (reichelt.de : ?Taster 9302?) usb plug + kable countersunk M3x16 screws + nutsCredits:Jooxoe3i Rate this 3D modelDownload 3D modelsFileFile size Pi-Boy_Classic212 KB
