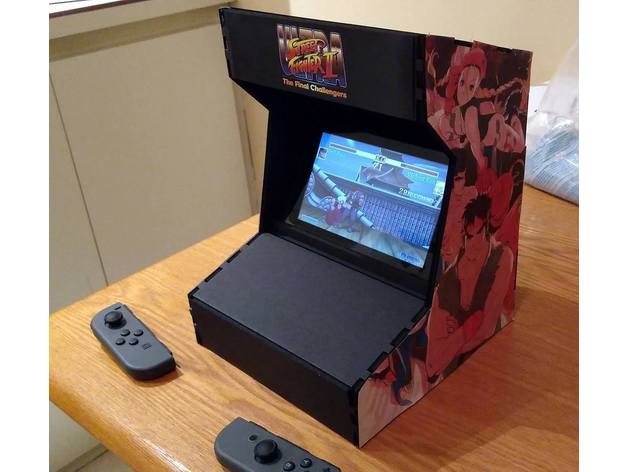

Nintendo Switch Arcade Cabinet (Laser Cut)Wanted to try my hand at a mini Nintendo Switch Cabinet for Maker Faire. Mocked this up. Will be iterating while I wait for Maker Faire to arrive ?Uses 3/16? material. I have been using Elmers Foamboard for my prototypes. It?s about ~$3.00 for a 20?x30? board from Target / Walmart and it cuts great on a laser cutter.May 15th 2017 ? v.0.1.5 ? Added back brace and front lip to keep Switch in place without having to use kickstand.June 1st 2017 ? v.0.1.6 ? Made some areas a little taller to lessen the gaps. Cabinet survived a trip to Megacon 2017.June 17th 2017 ? Added updated SVG with correct DPI. AI file is fine, but SVG was set to wrong DPI causing a 20% size reduction. Laser Cut Files5mm Wood or 3/16? Foam Board thickness required for items to fit together.Piece Sizes (Inches)Back 7.4444 x 8.606Base 7.4375 x 4.1339Braces 7.4514 x 1.977 7.0866 x 0.6481Control Panel 7.4526 x 3.3252Marquees 7.4549 x 1.977Sides 7.7643 x 10.3895Top 4.8819 x 7.4514Credits:SSilver2k2 Rate this 3D modelDownload 3D modelsFileFile size Nintendo_Switch_Arcade_Cabinet3 MB
