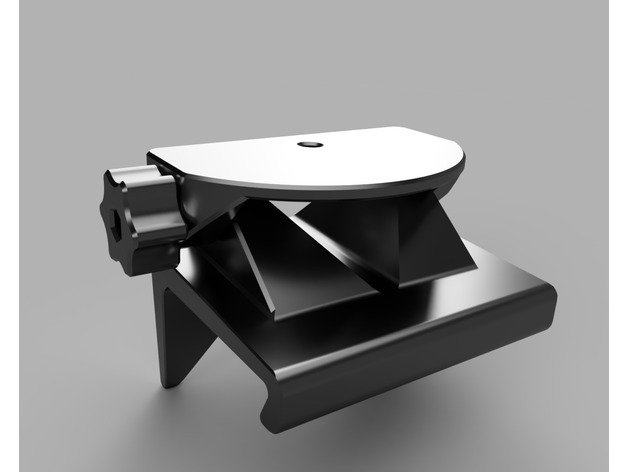

This is a design to mount a camera which uses a standard 1/4-20 UNC thread mount onto a PC monitor (approx 60mm in depth). The mount hooks over the front bezel of the monitor and hangs off the back.The mount pivots forwards and backwards on a joint using two M4x40 bolts. This is tightened into place using two M4 nuts (ideally nylock nuts) captured in large hand tightening knobs.This design also requires a standard 1/4-20 tripod screw e.g. https://www.amazon.com/Smallrig-Threaded-Tripod-Monopod-Release/dp/B00R7AWP04 which also acts to pose the camera to the left and right.This was originally designed to mount a SUB2r camera and a special top piece ?CMM Top SUB2r? is included for this particular camera (it has a large hole in the base for the fan).You will need to print: 1x ?Base?, 1x ?Top? or ?Top SUB2r? and 2x ?Knob?. All parts are intended to be printed in their default orientation and the ?base? part requires some support material.I have also included STEP files of the components and the original Fusion 360 file so you can alter it for your own needs if you wish.I have not yet printed this design as it was designed for someone else. Let me know if you need any slight changes and I?ll try to help as soon as I can.Credits: BrienAllison Rate this 3D modelDownload 3D modelsFileFile size Monitor_camera_mount_-_Tripod_screw809 KB
