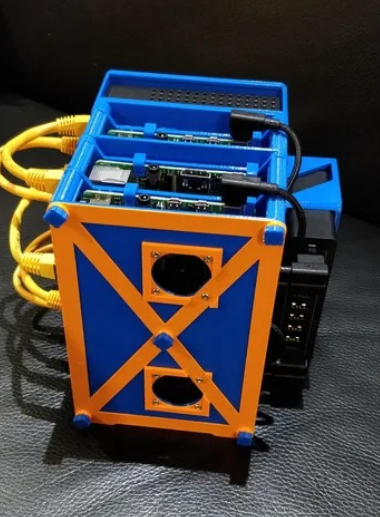

This is a modular rack for RaspBerry. The height is fully adjustable to your needs. The housing for the switch and the power module are optional as well as the fan layers.for a personnal project, I build a 3 floors Rack + Switch and power boxes. Some Pictures are attached to this Thing. btw, you can find below the hardware list for this project. 1 Raspberry 2 and 1 Raspberry 3 (I alreasy owned) 4 Raspberry Pi 4 (https://www.amazon.fr/gp/product/B07TC2BK1X/ref=ppx_yo_dt_b_asin_title_o07_s01?ie=UTF8&psc=1) 4 MicroSD (https://www.amazon.fr/gp/product/B07HB8SLMV/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1) 4 MasterHawk Fans 30?30 (https://www.amazon.fr/gp/product/B07D5QBFLK/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1) 4 Aukru Thermal Dis (https://www.amazon.fr/gp/product/B07W9JTDFZ/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1) 1x TP-Link TL-SG108E Switch (8 ports, Manageable) (https://www.amazon.fr/gp/product/B00JKB63D8/ref=ppx_yo_dt_b_asin_title_o07_s01?ie=UTF8&psc=1) 6x RJ45 patch FTP CAT 5e 15 cm (https://www.amazon.fr/gp/product/B002Q0PHIW/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1) note: 15 cm are fine for the 1st and 2nd floor. above that, use a 25 cm cable. 1x Anker PowerPort 10 Chargeur 60W 10 Ports USB (https://www.amazon.fr/gp/product/B00YTJ45HM/ref=ppx_yo_dt_b_asin_title_o07_s01?ie=UTF8&psc=1) 4x 10 cm USB Type C to USB (https://www.amazon.fr/gp/product/B074R8SS7Y/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1)improvment: The raspberry Pi v2 and v3, racked on the right, must be installed (OS + SSH) before insertion in the rack: The central pillar prevents the use of the hdmi on these models. No issue with v4.Print SettingsResolution: 0.2 Infill: 33 Filament_brand: Chromatick Filament_material: PLANotes: Everything can be printed in 0.2 except the TOP, BOTTOM and COLUMN screws which should be printed in 0.1. No support is needed except for the optionnals Switch boxes: printed it verticaly with support touching buildplate.Credits: RedLeu 5 / 5 ( 1 vote )Download 3D modelsFileFile size Modular+Raspberry+Pi+2,+3,+4+Rack4 MB
