Mini 10keys Keyboard free 3d print model download

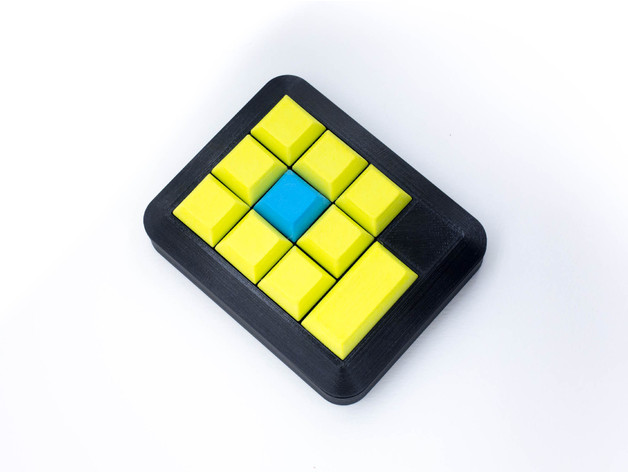

A mini 10 keys keyboard.Parts : 10 key switch. ( Cherry MX or compatible , gateron? ) 1 Teensy 2 10 keycaps ( I printed them ,design will be uploaded soon ) 4 M4 threaded Inserts 4 M4x12 screwSoftware : You can use https://github.com/GManzato/qmk_firmware/tree
- Model code
- 2614
5.00 USD
ABOUT THIS MODEL
Description & specifications
A mini 10 keys keyboard.Parts : 10 key switch. ( Cherry MX or compatible , gateron? ) 1 Teensy 2 10 keycaps ( I printed them ,design will be uploaded soon ) 4 M4 threaded Inserts 4 M4x12 screwSoftware : You can use https://github.com/GManzato/qmk_firmware/tree/master/keyboards/mini10kit?s a fork of the qmk firmware. For now I?ve just implemented a basic numkey keyboardPinout for the Teensy : Row : F5, F6, F7, B6 cols : F0, F1, F4Print SettingsPrinter Brand:UltimakerPrinter:Ultimaker 2Rafts:NoSupports:NoResolution:0.1mmInfill:35Notes:I used ColorFabb PLA Black. PLA is quite easy for this project and enough stiff. ABS will be a bit more difficult since you need precise dimensions Post-PrintingJust add the threaded instert with a soldering iron.Credits:gmanzato 5 / 5 ( 1 vote )Download 3D modelsFileFile size Mini_10keys_Keyboard345 KB
