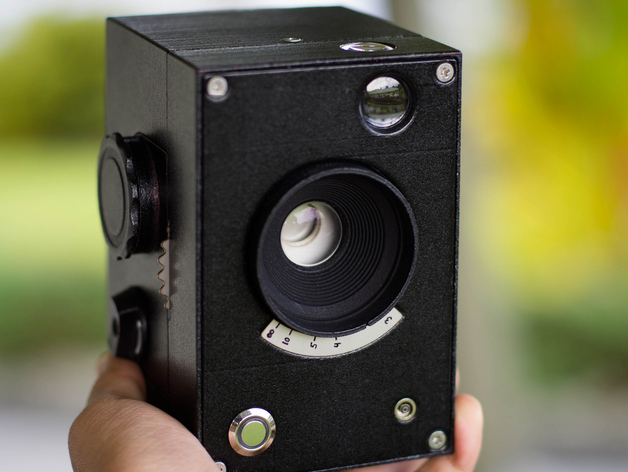

Lux Camera free 3d print model download

My goal is to design and produce a fully-fledged camera, using easily purchased off-the-shelf components, without having to rely on anything pulled from a potentially valuable piece of equipment. A secondary goal is also to make this camera completely open source through rapid-prototyping techniques such as laser cutting and 3D printing, and the Arduino physical computing platform.Type 6?6 Box Camera Media 120 Roll Film Objective 65mm f/5.6 Single Element, Coated Viewfinder Waist-level Brilliant finder Shutter Electromechanical single-leaf, 1/125-1s + B&T Aperture Rotating diaphragm, f/5.6-32 Dimensions 7.9 x 9.4 x 11.7 cm Construction SLS Polyamide (body), Stainless Steel (shutter, aperture)Parts ListElectricalPart Qty Source Notes Adafruit Trinket 5V 1 Adafruit Adafruit Quarter-size Protoboard 1 Adafruit Transistors, TIP120 2 Adafruit Perhaps a bit overkill Diode, 1N4001 1 Adafruit Solenoid, 5V 1 SparkFun Rotary Switch, 10 position BCD DIP 1 Jameco Could be substituted by a 10K trimpot Rocker Switch, SPST 1 Jameco Resistors, 1/4W, Asst. Values ? eBay 1% tolerance recommended for binary adder Battery, 7.4V 500mAh Turnigy LiPo 1 HobbyKing You will also want a charger Connectors, JST PH 4 eBay If you want to avoid hard wiring Connectors, JST BEC 1 eBay Female battery connector Momentary Button, SPST w/ LED 1 eBay Any 12mm momentary button will doOpticalPart Qty Source Notes PCX Lens, f=30mm, d=15mm 2 Anchor Optics Brilliant finder lenses. A tad pricey. Coated lenses available. 23084 Positive Meniscus Lens, f=80mm, d=19mm 1 Anchor Optics Objective lens. Coated. AX73931 Mirror, 17 x 23 x 1mm 1 Anchor Optics Brilliant finder mirror. AX31417MechanicalPart Qty Source Notes M3 CSK Machine Screws 10 McMaster M3 Hex Nuts, Thin 10 McMaster 1/4?-20 Square Nuts 1 McMaster Tripod Nut Spacer, L=2.5?, d=0.25? 2 McMaster Makeshift film rollers Ball Bearing, d=3mm 1 eBay Lens helical bearings Screws, No.1 L=1/4? 1 McMaster Screws, No.0 L=3/8? 1 McMaster Screws, No.0 L=1/8? 1 McMaster Machine Screws, 4-40 L=1/4? 1 McMaster Film roller screws Torsion Spring 1 McMaster Shutter return spring Stainless Steel Plate 1 McMaster Mat?l for laser cut parts Magnets, d=3/8?, t=1/16? 2 eBay, CMSYou?ll need to install the Arduino IDE and Trinket drivers available from Adafruit. Adafruit has a version on the Arduino IDE compatable with Trinket https://learn.adafruit.com/introducing-trinket/setting-up-with-arduino-ide You still need to install the Trinket USB drivers You still need to install the Trinket USB drivers The Trinket bootloader isn?t as plug-and-play as say, an Uno. Arduino CodeThere are additional parts! You will need this file to make metal parts for the aperture wheel, shutter, pressure plate, focus distance scale, etc. A laser cutting service like Pololu will know what to do with this file. (Note! There is a typo ? these should be cut from 0.025? stainless steel) Email me for the file![email?protected]How I Designed ThisCredits:ApostleofColour Rate this 3D modelDownload 3D modelsFileFile size Lux_Camera8 MB
