Dr. Vax Cable Holder Re-Mix free 3d print model download

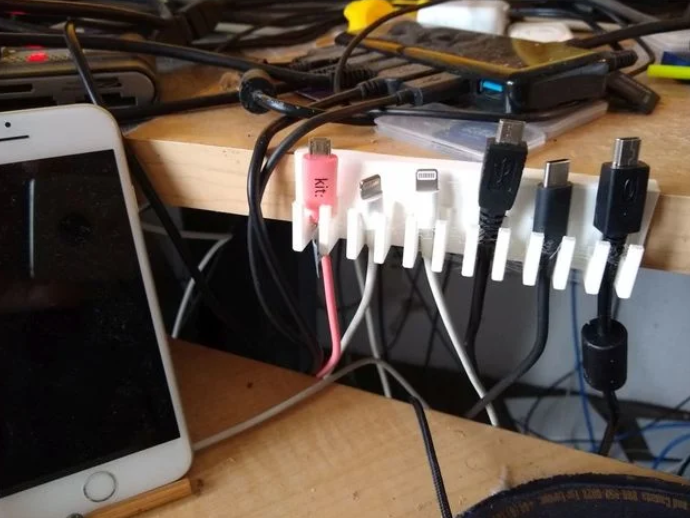

A variation of Irv?s cable holder. I adjusted the table clamping widths. Only 7mm showing on the top and not angling the bottom table clamp, but sloping it for easier printing. I also shortened slots and added a groove to set the connectors in.BTW Irv?s FreeCA
- Model code
- 566
5.00 USD
Pay with USDT or USDC. We check your payment and send the files to your email or Telegram.
ABOUT THIS MODEL
Description & specifications
A variation of Irv?s cable holder. I adjusted the table clamping widths. Only 7mm showing on the top and not angling the bottom table clamp, but sloping it for easier printing. I also shortened slots and added a groove to set the connectors in.BTW Irv?s FreeCAD tutorial is excellent but I prefer to switch to the Mesh work bench and manually create the mesh object and not rely on the mesh export defaults in the Parts Desing workbench.Print SettingsPrinter brand: Prusa Printer: I3 MK3S Rafts: No Supports: Yes Resolution: 0.16 Infill: 25% Filament_brand: Prusament Filament_color: Black Filament_material: PLANotes: PLEASE NOTE: You can slice the STL file with supports but I dislike trimming supports. I paused the print at layer 178 (26.7mm) and scotch taped a piece of folded cardboard at the top of the vertical riser that acted like a support and got a decent print. If you adjust the thickness of your clamp for your table that layer number will, of course, differ.Credits: gjpc Rate this 3D modelDownload 3D modelsFileFile size Dr.+Vax+Cable+Holder+Re-Mix651 KB
