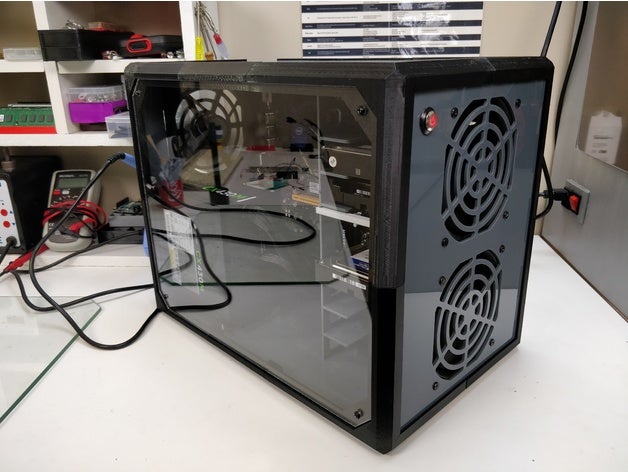

his is my 3D printed and laser cut custom NAS server case ! The case is composed of a 3D printed structure that hold the laser cut parts made with acrylic. It can fit up to an ATX motherboard (compatible w/ mATX and ITX), an ATX power supply and up to 6 3,5? HDDs. Plus 2 120mm fan openings on the front and 1 on the rear. I?ve also designed a SATA backplane to facilitate cable routing (not finished yet).To assemble the case you need: 14 M3 x19mm screws 8 6mm spacers for the side panels some 6mm spacers for the motherboard some M3 nuts (to maintain the spacers) 1 16mm momentary switchPrint SettingsPrinter: Alfawise U30 Rafts: No Supports: Yes Resolution: 0.2 Infill: 20% Filament: Dailyfil PETG BlackNotes:All the parts of the frame are 3D printed in PETG with 20% infill and assembled using 14 M3 x19mm scwews. Make sure to remove all the support material and properly clean the grooves on these parts to facilitate the fitment of the panels.List of the parts to print and quantity:angle alim bas x1 angle alim haut x1 angle arriere bas x1 angle arriere haut x1 angle central x4 angle avant x4 pci support x1 Laser cuttingAll the panels are made from 3mm acrylic sheets, I?ve used 4 50cm x 40cm sheets to cut all the parts. The 2 side panels are made from 2.5mm plexiglass.All the parts are available as .DXF files, they should be compatible with most laser cutting machines.List of the parts to cut and quantity:back x1 front x1 bottom x1 top x1 motherboard tray x1 hdd cage x2 hdd support x6 hdd crossing x1 support psu x1 side x2Credits: GOODWIN_YT 5 / 5 ( 1 vote )Download 3D modelsFileFile size DIY+NAS+SERVER+CASE6 MB
