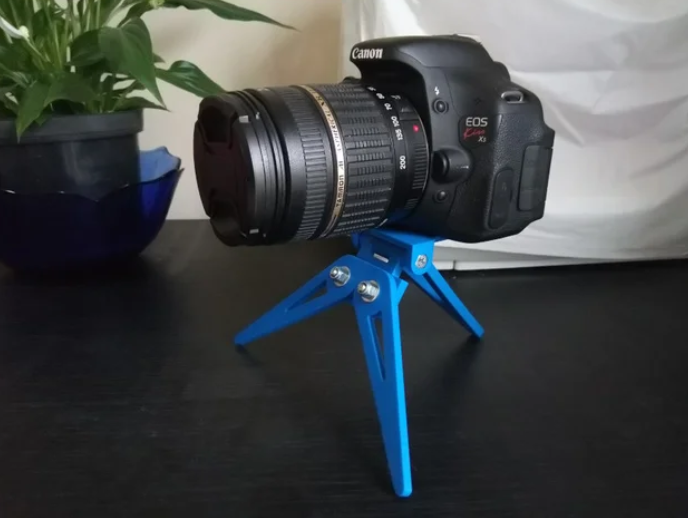

Compact Tripod ? Foldable free 3d print model download
List of changes: I remade the mount with a smaller plate to allow me to access the battery compartment on my camera. The original dimensions were slightly loose-fitting so I remade each part with a smaller clearance between each part. The front legs weren?t id
- Model code
- 656
5.00 USD
ABOUT THIS MODEL
Description & specifications
List of changes: I remade the mount with a smaller plate to allow me to access the battery compartment on my camera. The original dimensions were slightly loose-fitting so I remade each part with a smaller clearance between each part. The front legs weren?t identical so I fixed that. I made the holes recessed to fit flush with M5 hex bolts where necessary.Print SettingsRafts: Doesn?t MatterSupports: No Resolution: 0.2 Infill: 20%Notes: Identical parts ? print the front leg twice. Post-PrintingYou will need: ? 2x M5 self-locking nuts ? 3x M5 washers ? 1x M5 wingnut ? 2x M5 hexagonal bolts ? 16 mm long ? 1x M5 hexagonal bolt ? 60 mm long ? 1x 1/4-20 UNC bolt for the camera (or a bolt off another tripod)Credits: willcollin Rate this 3D modelDownload 3D modelsFileFile size Compact+Tripod+-+Foldable2 MB
