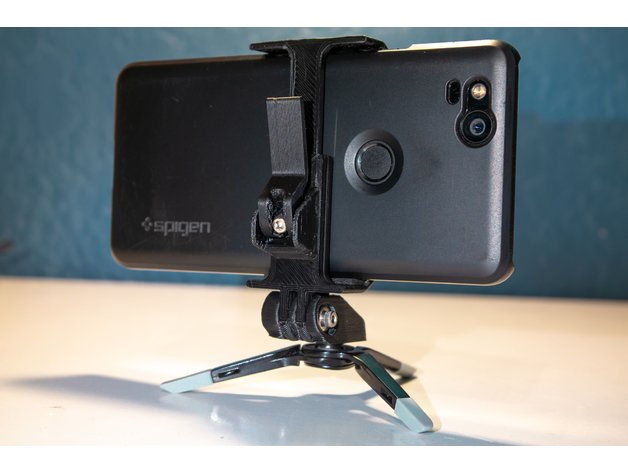

I designed this in an attempt to improve on existing phone mount designs that use either a screw or spring tension to clamp the phone in place. This mount uses an eccentric cam lock mechanism that allows it to be quickly released and locked in place with the flip of a lever. It grips the phone more securely than a spring-loaded mount and the phone can be inserted and removed much faster than with a screw clamping mount.AssemblyRequired parts: 1x M3x20mm screw 1x M3x16mm screw 2x M3 hex nut 1x 1/4-20 hex nutA short version of the locking lever is included, which minimizes the possibility of accidentally unlocking the mount or breaking the lever off but requires more force to operate.The mount has a standard GoPro-compatible adjustable angle mounting point for use with any other mounts designed for use with GoPro cameras. A 3d-printable GoPro-compatible tripod mount is included in this design and requires a 1/4-20 hex nut for mating with the tripod threads. The clearance hole for screwing together the GoPro mount is sized for a M3 screw, but it can be drilled out for use with larger hardware if needed.Using some thin rubber or foam tape (neoprene tape like this highly recommended) on the jaws will help the mount grip the phone much better.PrintingPrint in any material at any layer height with 100% infill. Supports are required on the locking lever and GoPro mount parts. I used eSun ABS+ for the mount shown in the photos.Design FilesFusion 360 original design file included.Credits: jackw01 Rate this 3D modelDownload 3D modelsFileFile size Cam_Locking_Multipurpose_Phone_Mount4 MB
