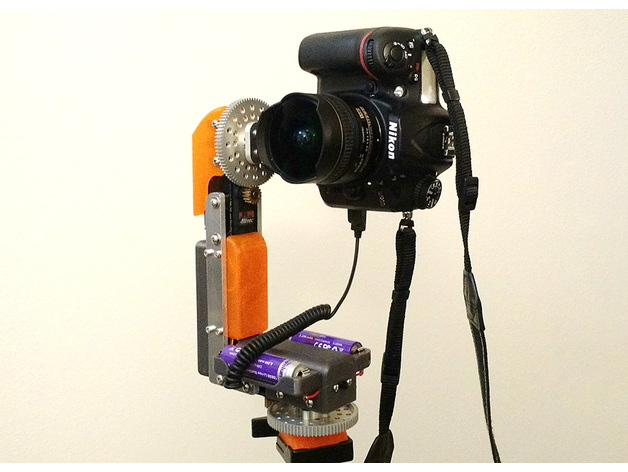

An automatic DSLR rig for capturing 2D/3D panorama and 360 photosphere (rotates around no-parallax point). It is also designed for capturing dense outward lightfield on a sphere of radius around 20cm (no-parallax point on a sphere) ? to hopefully create stereoscopic full-parallax rendering for VR.2D Stitched Photoshere: https://goo.gl/photos/Rne65gYcaWQnx26o7 3D Anaglyph Photosphere: https://goo.gl/photos/1s5AUaHT2Pbz3pza7 3D Parallax Photosphere: https://www.youtube.com/watch?v=1oWBsR8zTP0 3D Stereoscopic Photosphere for VR (Google cardboard camera format): https://goo.gl/photos/61VhSRtq2Ka4yDVn7 (Download and put it in DCIM/CardboardCamera of an Android phone)The design is inspired by Phil Warner?s panobot https://www.flickr.com/photos/philwarner/sets/72157603776902016/ I tried to make it as compact as possible with one battery source. It has a screen showing menu and options for configuring shots (HDR, rows, cols, angles, etc). The firmware can be updated over Wifi.It uses: Two servos from servocity.com https://www.servocity.com/cm-d645mw-180-servo-gearbox | https://www.servocity.com/sg-d645mw-cm-400-servo-gearbox Wemos D1 for controller https://www.wemos.cc/product/d1-mini.html OLED Shield https://www.wemos.cc/product/oled-shield.html Joystick http://www.ebay.com/itm/201433557483 18650 batteries https://www.amazon.com/gp/product/B00IZT269G Battery clips https://www.amazon.com/gp/product/B00LPOTCAY 2.5mm jack https://www.amazon.com/gp/product/B01GBN1WPQ UBEC https://www.amazon.com/gp/product/B0177Y2PZY Tripod screw http://www.ebay.com/itm/262329788916 Optocouplers for camera shutter http://www.ebay.com/itm/262136737476 Analog Multiplexer 4051 http://www.ebay.com/itm/231558118246 220 Ohms ResistorThis rig is made specifically to rotate around the no-parallax point of Nikon D7200. The original fusion 360 is attached for modification and educational purposes.The schematic and board designs (Eagle) are also provided.Credits:supasorn Rate this 3D modelDownload 3D modelsFileFile size Automatic_3D_360_Panorama_DSLR_Camera_Head3 MB
