ATX Backplane free 3d print model download
A printed ATX backplane for standard ATX motherboard. Would not be to difficult to change for micro or extended boards. Split into 2 parts to print on my replicator dual bed.I am pretty sure everything should fit but it hasn?t been tried in anger yet.Looks goo
- Model code
- 2548
5.00 USD
ABOUT THIS MODEL
Description & specifications

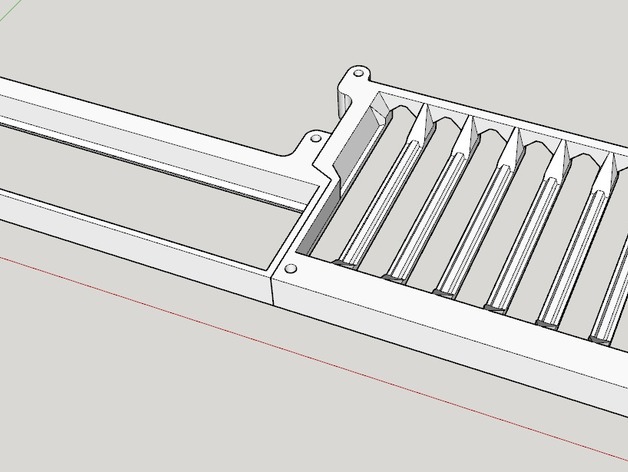

A printed ATX backplane for standard ATX motherboard. Would not be to difficult to change for micro or extended boards. Split into 2 parts to print on my replicator dual bed.I am pretty sure everything should fit but it hasn?t been tried in anger yet.Looks good size wise when printed. I will remove the in progress tag when I have had a motherboard against it.added modular version separate stl files and sketchup file4 slot No I/O added. Updated 4 slot, added vertical holes. Instructionsprinted very well in PLA on a raft with minimal support.The hole spacings on the 7 slot are to fit in between the 20?20 extrusion framework of my new scratch-build PC.Credits:stephenmhall Rate this 3D modelDownload 3D modelsFileFile size ATX_Backplane1 MB
